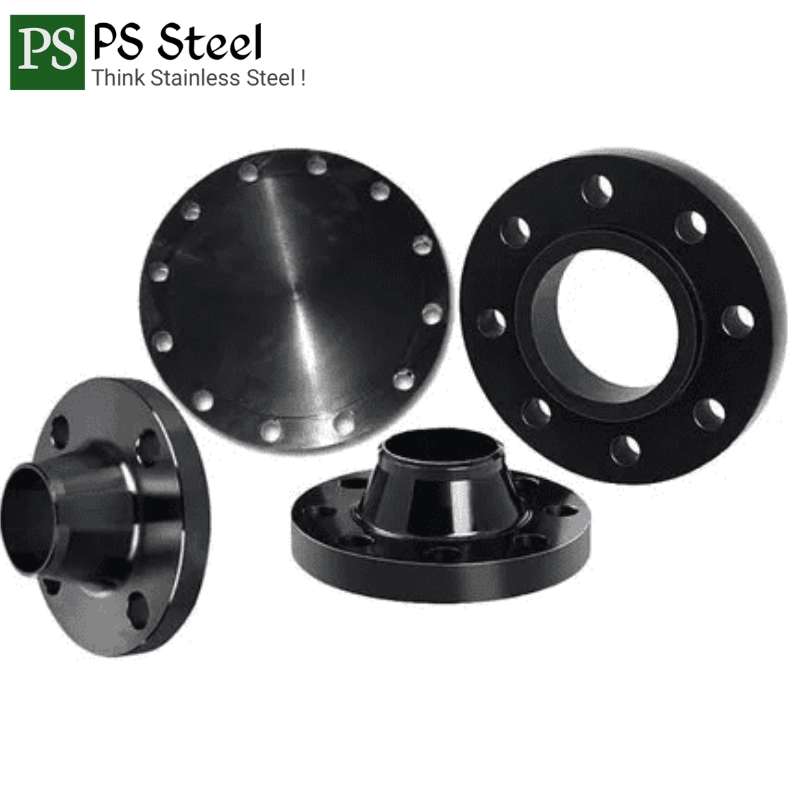

Mild Steel Pipe Flanges Details:
Specification
Details
Size Range
½ inch (15mm) to 48 inch (1200mm), thickness 3mm–40mm, pressure rating 150#–2500#
Types
Slip-On, Weld Neck, Blind, Socket Weld, Threaded, Lap Joint, Reducing Flange
Standards
IS 2062, ASTM A105/A350, BS 10, IS, ANSI, DIN, JIS
Face Types
Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Material
Mild Steel (MS), IS 2062 Grade A/B
Surface Finish
Black Painted, Red Oxide Coated, Hot-Dip Galvanized
Applications
Oil & Gas, Power Plants, Water Treatment, Chemical Processing, HVAC, Construction
| Specification | Details |
|---|---|
| Size Range | ½ inch (15mm) to 48 inch (1200mm), thickness 3mm–40mm, pressure rating 150#–2500# |
| Types | Slip-On, Weld Neck, Blind, Socket Weld, Threaded, Lap Joint, Reducing Flange |
| Standards | IS 2062, ASTM A105/A350, BS 10, IS, ANSI, DIN, JIS |
| Face Types | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Material | Mild Steel (MS), IS 2062 Grade A/B |
| Surface Finish | Black Painted, Red Oxide Coated, Hot-Dip Galvanized |
| Applications | Oil & Gas, Power Plants, Water Treatment, Chemical Processing, HVAC, Construction |
MS Pipe Flange Supplier from Delhi – PS Steel
Welcome to PS Steel, your trusted MS Pipe Flange supplier from Delhi, India. We specialize in providing high-quality mild steel (MS) flanges. We strive hard to provide durable and cost-effective solutions to meet the stringent requirements of your industrial piping projects.
Whether you need flanges for construction, repair or any maintenance work, PS Steel is the right and reliable choice for you.
What are MS Pipe Flanges?
MS pipe flanges are mechanical parts made of mild steel that are used to connect pipes, valves and other equipment. These flanges provide strong and leak-proof joints to piping systems, allowing easy installation, repair and replacement of the system.
These flanges are widely used in various industries due to the strength, durability and affordability of mild steel.
Types of MS Pipe Flanges Available by PS Steel
We understand the different needs of our customers and offer a wide range of flanges accordingly:
Slip-on Flanges – Easily fitted and welded onto the pipe, suitable for low pressure applications.
Weld Neck Flanges – Designed to provide robust connections in high pressure and temperature environments.
Blind Flanges – Used to close pipe ends or for testing.
Socket Weld Flanges – Ideal for systems with compact spaces and frequent disconnections.
Threaded Flanges – Threaded designs that can be installed without welding in low pressure settings.
Why Choose PS Steel?
Wide Range of Sizes – Available from ½ inch to 48 inches.
High Quality Materials – Made from the finest mild steel, strong and corrosion-resistant.
Standards Compliant – Compliant to BS 10 and IS Standards.
Affordable Price – Competitive prices without compromising on quality.
Fast Delivery – Timely delivery from Delhi and across North India.
Expert Advice – Our team helps you choose the right flange as per your project.
Major Uses of MS Pipe Flanges
Our flanges are trusted in various industries like:
- Oil & Gas Industry
- Power Plants
- Water Treatment Plants
- Chemical Processing Units
- Construction & Infrastructure
- HVAC Systems
MS Pipe Flanges Dimension Chart in Kg
At PS Steel Supplier, we provide a detailed MS pipe flanges dimension chart in kg to help engineers and buyers select the right flange size and weight for industrial applications. Accurate dimension charts are essential for load calculation, installation planning, and project estimation.
If you are working with stainless steel materials, you can also refer to our stainless steel flanges weight chart for comparison between MS and SS flanges.
Types of MS Pipe Flanges
MS flanges are available in different types such as weld neck flanges, orifice flanges, and reducing flanges. Each type is designed based on pressure handling, flow control, and piping requirements.
To understand all flange variations, you can explore our guide on types of flanges, which explains their structure and industrial applications.
Applications & Industrial Usage
MS pipe flanges are widely used in construction, water pipelines, and industrial systems. They are often used with pipe fittings and supported by fasteners for secure and leak-proof connections.
We supply flanges across major industrial areas including Delhi, Ghaziabad, and nearby regions.
Related Charts & Technical Standards
For additional reference and better comparison, you can check:
Why Choose PS Steel Supplier?
At PS Steel Supplier, we ensure accurate dimension charts, high-quality materials, and reliable delivery across India. Explore our complete flanges category or browse our full range of stainless steel flanges for industrial solutions.
External References & Industry Standards
At PS Steel Supplier, we follow globally recognized standards for flange dimensions and weight calculations. For more technical information, you can refer to the following trusted external resources:
Connect with PS Steel Supplier
GST Number: 07ALKPR4721N1ZK
MS flange is a mechanical device made of mild steel, which is used to connect pipes, valves and equipment. It provides strong and secure joints to the piping system.
Class 150 and 300 flanges indicate the pressure rating of the flange. Class 150 is used in low pressure systems and class 300 in relatively high pressure systems.
Yes, MS flanges are made as per different international standards (like ANSI, IS, DIN). Among these, ratings like class 150, 300 etc. are generally accepted as standard.
The size of MS pipe is generally available from ½ inch to 48 inches. It is also made in different thickness (Schedule/Wall Thickness) and length as per the requirement.
