MS Pipe Price Per Kg, Sizes & Weight Chart (2026 Updated)

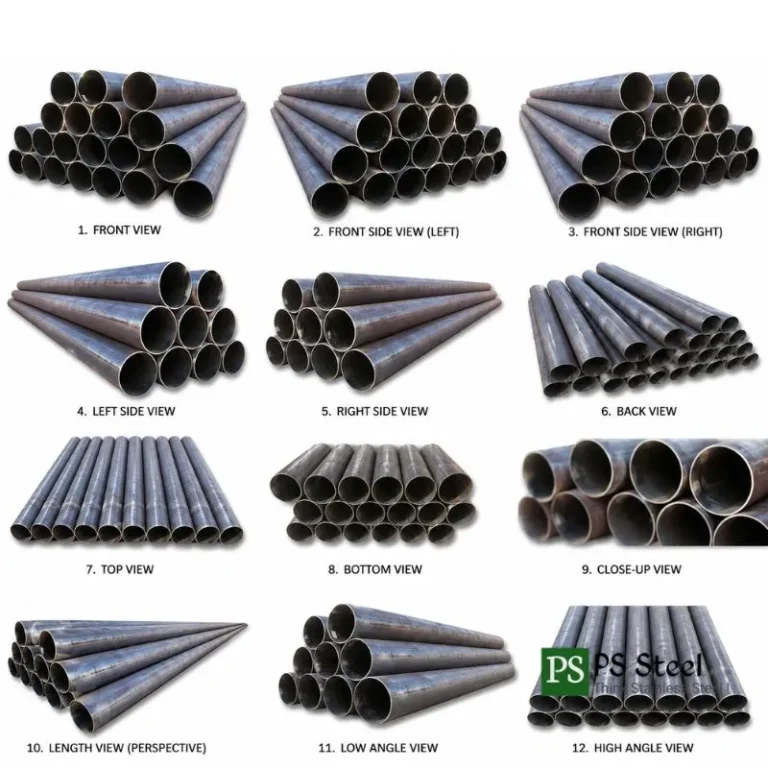

MS Pipes
Best ms pipe supplier online
Ms Pipes In Bulk Supplier
Mild Steel Pipe | Ps Steel | MS Pipe - Stainless Steela
Industrial MS Pipe Weight Chart In KG – Manufacturer of MS Pipe
Ps Steel Ms Erw Pipe, Black Pipe, MS Pipe Weight Chart

Product Name: Mild Steel Pipe (MS Pipe
Material: Mild Steel (Low Carbon Steel – IS 1239 / IS 3589 Standard)
Shape: Hollow cylindrical (Round shape)
Sizes Available:
15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 80mm, 100mm and above
Thickness:
Typically ranges from 1.5 mm to 6 mm (can vary as per requirement)
Length:
Standard 6 meters (custom length available on demand)
Finish:
Black finish (raw), Galvanized (GI coated), Painted or Polished

Complete Guide to MS Pipes, SS Pipes, Weight Charts & Industrial Pipe Solutions

At PS Steel, we provide complete information related to MS pipes, stainless steel pipes, industrial pipe weight charts, pipe schedules, pipe fittings, and steel tube solutions. Whether you are a contractor, fabricator, engineer, builder, or industrial buyer, this resource section will help you understand different types of steel pipes and their applications in construction and industrial projects.

If you are searching for the latest MS pipe weight chart in kg, industrial pipe specifications, schedule pipe dimensions, or steel square pipe weight details, this guide covers everything in a simple and professional way.

Industrial MS Pipe Weight Chart

Understanding the correct industrial MS pipe weight chart is very important for fabrication, transportation, structural engineering, and cost estimation. Weight calculation helps industries select the right pipe thickness, diameter, and load-bearing capacity.

You can check the complete Industrial MS Pipe Weight Chart for detailed pipe size and weight information.

Industrial mild steel pipes are widely used in:

  • Construction projects
  • Industrial fabrication
  • Water supply systems
  • Structural frameworks
  • Mechanical engineering works
  • Heavy-duty manufacturing plants

MS Pipe Weight Chart in KG

The MS pipe weight chart in kg helps buyers and engineers calculate accurate pipe weight according to diameter and wall thickness. This is useful for transportation cost estimation and material planning.

Explore the complete MS Pipe Weight Chart in KG to check standard pipe dimensions and weight details.

Common types of MS pipes include:

  • Round MS Pipes
  • Square MS Pipes
  • Rectangular Steel Tubes
  • Black Steel Pipes
  • GI and Structural Pipes

Mild Steel Pipe and Stainless Steel Pipe Solutions

Both mild steel pipes and stainless steel pipes are used in different industrial applications. Mild steel pipes are popular for their strength and affordability, while stainless steel pipes provide excellent corrosion resistance and long-term durability.

Learn more about pipe types and applications here: Mild Steel Pipe & Stainless Steel Pipe Guide

Stainless steel pipes are commonly used in:

  • Food processing industries
  • Pharmaceutical plants
  • Chemical industries
  • Oil and gas sectors
  • High-temperature applications

Schedule 40 Mild Steel Pipe

Schedule 40 mild steel pipes are among the most commonly used steel pipes in industrial and commercial projects. These pipes provide excellent strength, durability, and pressure-handling capacity.

Check complete dimensions and specifications here: Schedule 40 Mild Steel Pipe

Schedule 40 pipes are widely used in:

  • Plumbing systems
  • Industrial pipelines
  • Water transportation
  • Gas supply systems
  • Mechanical structures

SS Pipe Gauge Chart

The SS pipe gauge chart helps users understand stainless steel pipe thickness measurements and gauge standards. Proper gauge selection is essential for industrial safety and performance.

View the complete SS Pipe Gauge Chart for detailed stainless steel pipe thickness information.

SS Pipes vs MS Pipes – Which One Should You Choose?

Choosing between SS pipes and MS pipes depends on budget, durability, corrosion resistance, and application requirements.

Read the complete comparison guide: SS Pipes vs MS Pipes

Key differences include:

  • Stainless steel pipes resist rust better
  • MS pipes are more economical
  • SS pipes have longer lifespan
  • MS pipes are preferred for structural applications
  • SS pipes are suitable for hygienic industries

Stainless Steel Pipe Fittings Catalogue

Stainless steel pipe fittings are essential for connecting pipelines and maintaining flow systems in industries. Different fittings are available according to pressure and industrial usage.

Explore the complete Stainless Steel Pipe Fittings Catalogue .

Common stainless steel fittings include:

  • Elbows
  • Reducers
  • Tees
  • Couplings
  • Flanges
  • Pipe connectors

Leading MS Pipe Manufacturer in India

Finding a reliable MS pipe manufacturer is important for quality assurance and industrial performance. High-quality mild steel pipes ensure durability, strength, and long service life.

Learn more here: MS Pipe Manufacturer

At PS Steel, we focus on:

  • Premium quality steel products
  • Accurate dimensions
  • Industrial-grade strength
  • Competitive pricing
  • Fast delivery support

Steel Square Pipe & Tube Weight Chart

The steel square pipe and tube weight chart helps engineers and fabricators select the correct pipe dimensions for structural and industrial applications.

Check the complete Steel Square Pipe Tube Weight Chart .

Square steel pipes are commonly used in:

  • Steel fabrication
  • Building structures
  • Furniture manufacturing
  • Industrial frameworks
  • Mechanical support systems

Why Choose PS Steel?

PS Steel is a trusted source for industrial steel pipe information, weight charts, and steel product solutions. We provide detailed technical resources for buyers, engineers, fabricators, and construction professionals.

Our platform helps users understand:

  • MS pipe dimensions and specifications
  • Stainless steel pipe standards
  • Industrial pipe schedules
  • Pipe fitting catalogues
  • Steel tube weight calculations
  • Industrial steel applications
PS Steel — Product Specification Hub

MS Pipe — Complete Technical Reference

Mild Steel Pipes | ERW & Seamless | All Sizes, Grades & Schedules | ISI Certified | Industrial Supply Across India

🔩

Product RangeMS Pipe Types & Categories

PS Steel supplies a complete range of Mild Steel Pipes for structural, industrial, and utility applications — all manufactured as per BIS/IS standards with full test documentation.
Round MS Pipe
Standard circular section — structural, plumbing & mechanical use
Square MS Pipe (SHS)
Equal hollow section — furniture, gates & fabrication frames
Rectangular MS Pipe (RHS)
Unequal hollow section — structural columns & supports
ERW Pipe
Electric Resistance Welded — medium-pressure lines & structures
Seamless MS Pipe
No weld seam — high-pressure & high-temperature service
Black MS Pipe
Mill-finish black oxide — standard structural & underground use
GI Pipe (Galvanized)
Hot-dip zinc coated — water supply, plumbing & outdoor structures
Structural Steel Pipe
Heavy-wall sections for columns, trusses & RCC supports
Boiler Tube / Pipe
High-temp seamless tubes for steam boilers & heat exchangers
Water Line Pipe
IS 1239 / IS 3589 grade — municipal water distribution
Heavy Duty Industrial Pipe
Extra-heavy schedule — chemical, oil & gas environments
Fabrication Pipe
Custom cut & bent ERW pipes for in-shop fabrication assemblies
SCH 40 MS Pipe
ANSI standard wall — most common industrial piping grade
SCH 80 MS Pipe
Extra heavy wall — high-pressure fluid & refinery service
Hollow Section Pipe
SHS & RHS for architectural & engineering use
📏

Dimensions ReferencePipe Sizes — NB, OD & MM

Available in nominal bore (NB), outer diameter (OD), and metric (mm) dimensions. Custom sizes on request. As per IS 1239, IS 3589, ASTM A53 standards.

Standard Inch / NB Sizes
½" (15 NB)¾" (20 NB)1" (25 NB)1¼" (32 NB)1½" (40 NB)2" (50 NB)2½" (65 NB)3" (80 NB)3½" (90 NB)4" (100 NB)5" (125 NB)6" (150 NB)8" (200 NB)10" (250 NB)12" (300 NB)Custom NB
Metric OD Sizes (mm)
21.3 mm26.9 mm33.7 mm42.4 mm48.3 mm60.3 mm76.1 mm88.9 mm114.3 mm139.7 mm168.3 mm219.1 mm273 mm323.9 mm406.4 mm
Square Hollow Section — SHS
20×2025×2532×3240×4050×5060×6075×75100×100120×120150×150Custom SHS
Rectangular Hollow Section — RHS
40×2050×2560×4075×50100×50100×60120×60150×75200×100Custom RHS
Standard Length: 6 metres (20 ft) per piece. Also available in 3m, 12m, or cut-to-size. Random lengths for bulk orders.
🔧

Wall ThicknessPipe Schedules & Thickness Chart

ScheduleNameWall ThicknessTypical Use
SCH 5Extra Light1.65 – 2.11 mmHVAC, instrument lines
SCH 10Light2.11 – 3.05 mmGas lines, structural columns
SCH 20Standard Light2.77 – 3.91 mmWater distribution, plumbing
SCH 40Standard (STD)3.05 – 8.56 mmIndustrial piping, construction
SCH 60Medium Heavy4.78 – 11.13 mmProcess plants, chemical lines
SCH 80Extra Heavy (XH)5.49 – 12.7 mmHigh-pressure fluid, refineries
SCH 100Heavy6.35 – 15.09 mmHydraulic, petroleum service
SCH 120Extra Heavy8.38 – 17.48 mmHigh-temp steam lines
SCH 160Double Extra Heavy9.53 – 21.44 mmUltra-high-pressure service
XXHDouble Extra Heavy12.7 – 25.4 mmOil, gas, extreme pressure
IS Standard Thickness Classes
Light (L) Class
1.6 – 2.9 mm | Non-pressure structural use
Medium (M) Class
2.9 – 4.5 mm | General plumbing, water lines
Heavy (H) Class
4.5 – 8.0 mm | Industrial pressure service
⚖️

MS Pipe Weight Chart in KGWeight Per Meter Reference

Round Pipe Formula: (OD − WT) × WT × 0.0246615 = kg/m  |  Square Pipe Formula: (Side − WT) × WT × 4 × 0.00785 = kg/m
Round MS Pipe — Weight Chart (kg/m)
NB SizeOD (mm)SCH 40 ThkSCH 40 Wt (kg/m)SCH 80 ThkSCH 80 Wt (kg/m)
½"21.32.77 mm1.273.73 mm1.62
¾"26.72.87 mm1.693.91 mm2.20
1"33.43.38 mm2.504.55 mm3.24
1½"48.33.68 mm4.055.08 mm5.41
2"60.33.91 mm5.445.54 mm7.48
3"88.95.49 mm11.297.62 mm15.27
4"114.36.02 mm16.078.56 mm22.32
6"168.37.11 mm28.2610.97 mm42.56
8"219.18.18 mm42.5512.7 mm64.64
10"273.19.27 mm60.2912.7 mm82.27
12"323.99.53 mm73.8812.7 mm98.44
Square MS Pipe — Weight Chart (kg/m)
Size (mm×mm)2.0 mm wall2.5 mm wall3.0 mm wall4.0 mm wall
25×251.411.722.01—
40×402.392.933.454.43
50×503.043.744.435.74
75×754.685.776.858.95
100×1006.317.819.2912.18
150×150—11.8514.2018.75
🏅

Material GradesMS Pipe Grades & Chemical Properties

Grade Fe330 / E210
Carbon ≤ 0.25% | Mn ≤ 1.5% | Tensile ≥ 330 MPa | Yield ≥ 210 MPa
Grade Fe410 / E250
Carbon ≤ 0.23% | Mn ≤ 1.5% | Tensile ≥ 410 MPa | Yield ≥ 250 MPa
Grade YST 210
Yield ≥ 210 MPa | UTS ≥ 330 MPa | Elongation ≥ 30%
Grade YST 240
Yield ≥ 240 MPa | UTS ≥ 410 MPa | Elongation ≥ 25%
Grade YST 310
Yield ≥ 310 MPa | UTS ≥ 450 MPa | Elongation ≥ 20%
ASTM A53 Gr. B
C ≤ 0.30% | Mn ≤ 1.2% | Tensile ≥ 415 MPa | Yield ≥ 240 MPa
API 5L Gr. B
Yield ≥ 241 MPa | UTS ≥ 414 MPa | Carbon ≤ 0.28%
📋

CertificationIS / BIS & International Standards

IS 1239 Part 1
MS welded pipe — Light, Medium & Heavy class for water, steam & gas
IS 3589
ERW/SAW steel pipe for water and sewage — Grade Fe330 & Fe410
IS 1161
Steel tubes for structural purposes — Grade YST 210, 240, 310
IS 4923
Hollow steel sections for structural use — square & rectangular
IS 1978
Line pipe for oil & gas transmission — Grade A, B, X42, X52
IS 2062
Hot rolled mild steel — parent material Grade E250 (Fe410)
IS 3601
Seamless & welded tubes for high-temp boiler applications
IS 9295
Steel tubes for idler rollers & conveyor systems
ASTM A53 Grade A / B
Black and galvanized welded & seamless steel pipe
ASTM A106 Grade B / C
Seamless carbon steel for high-temperature service
ASTM A500
Cold-formed welded & seamless structural tubing (HSS)
API 5L Grade B / X42 / X52
Line pipe for oil & gas transmission pipelines
ASME B36.10M
Welded & seamless wrought steel pipe dimensional standard
DIN 2440 / EN 10255
European non-alloy steel tubes for threading & welding
BS 1387
British standard for screwed & socketed steel tubes
EN 10219 / EN 10210
Cold & hot-formed hollow sections for structural use
🏗️

Usage AreasMS Pipe Applications

RCC building structural columns & supports
Scaffolding and temporary support structures
Bridge girders and underdeck structures
Road divider and highway barrier poles
Industrial shed & warehouse framing
Roof truss and purlin systems
Metro rail station structures
Pre-engineered building (PEB) systems
Pile driving & foundation casing
Multi-storey car park structure
Municipal water supply mains
Industrial process water lines
Overhead water tank supply piping
Underground distribution lines
Sewage and drainage pipes
Firefighting water ring mains
Borewell casing pipe
Pump suction & delivery lines
Steam line and boiler piping
Compressor & pneumatic air lines
Hydraulic fluid transmission piping
Chemical process plant pipelines
Heat exchanger shell & tube
Conveyor roller tubes
Machine guarding and safety barriers
Cement plant piping systems
HVAC chilled water & cooling circuits
Fire suppression sprinkler systems
MS gates and boundary grills
Staircase railings and balustrades
Industrial racking and shelving
Furniture legs and table frames
Greenhouse structural tubing
Farm gate posts and fencing
Drip & sprinkler irrigation main lines
Borewell rising main pipe
Gym equipment and fitness frames
Signage and billboard structures
⭐

Product AdvantagesKey Features of MS Pipe

High Tensile Strength
Yield strength 210–310 MPa — suitable for load-bearing applications
Excellent Weldability
Low carbon — easy MIG, TIG, ARC & gas welding without pre-heating
Corrosion Protection
Available galvanized, epoxy, powder coated or black oxide finish
Heavy Load Capacity
Handles axial, bending & torsional loads in structural applications
Long Service Life
25–50+ year lifespan in protected or galvanized applications
Heat Resistance
Retains structural integrity up to 400–500°C in standard grades
Machinable & Formable
Cut, drilled, bent and formed without cracking or hardening issues
Cost Effective
Most economical structural metal — lowest cost per kg vs SS or aluminium
Smooth Inner Bore
ERW & seamless bore ensures low friction coefficient for fluid flow
Dimensional Accuracy
Close-tolerance OD, wall thickness & straightness per IS/ASTM
Wide Availability
Stocked in all standard sizes — fast delivery across India
100% Recyclable
Fully recyclable steel — environmentally responsible material choice
🎨

Surface TreatmentPipe Coating Types

Hot-Dip Galvanized (HDG)
Zinc coat 85–600 g/m² | IS 4736 | Best outdoor corrosion protection
Pre-Galvanized (Strip GI)
IS 277 | Interior use — lighter zinc coating, cost-effective
Black Oxide (Mill Finish)
Natural oxide scale — standard structural & fabrication use
Epoxy Lined / Coated
Internal epoxy for water mains — prevents rust, scaling & bacteria
Powder Coated
Thermoset powder — decorative & architectural MS pipe products
Red Oxide Primer
Anti-rust primer coat — pre-treatment before final paint in construction
3-Layer Polyethylene (3LPE)
Oil & gas transmission — superior mechanical protection underground
Bituminous / Tar Coating
External coal tar enamel — underground pipes & sewage networks
🔗

Connection SystemsFittings & Accessories

Elbow (90° & 45°)
Long & short radius — butt weld and socket weld types
Tee (Equal & Reducing)
Branch connection fittings — butt weld and socket type
Reducer
Concentric & eccentric — pipe size transition fittings
Flanges
Slip-on, weld-neck, blind — IS 6392 / ANSI B16.5 rated
End Cap
Pipe end closure — butt weld type, flat or dished
Coupling & Union
Threaded & socket weld — connecting two pipe sections
Nipple
Close, short & long — threaded extension for valve connections
Cross / Four-Way
Four-branch connection — manifold & distribution systems
Pipe Clamps & Hangers
U-bolt, saddle, pipe shoe — fixing to structural supports
Gaskets & O-Rings
Spiral wound, ring joint, rubber — flange sealing solutions
Pipe Sleeves & Spacers
Wall penetration & isolation — insulating & fire-rated options
End Caps & Plugs
Threaded & push-fit — protection during storage & transport
PTFE Thread Tape
Sealing tape for threaded MS pipe joints — pressure rated
Expansion Joints
Thermal expansion compensation for long pipe runs
🏭

Quality & ProcessManufacturing & Testing Standards

ISI Mark Certification
BIS IS 1239 / IS 3589 / IS 4923 — mandatory for government projects
Hydrostatic Pressure Test
Every pipe tested at 1.5× working pressure — per IS 1239 & ASTM A53
Ultrasonic Weld Testing (UT)
Non-destructive seam inspection — detects internal defects
Eddy Current Testing (ECT)
Inline defect detection for ERW weld seam integrity
Tensile & Bend Test
Mechanical property verification — yield, UTS & elongation per heat
Chemical Analysis
Spectroscopic C, Mn, Si, P, S analysis per IS 228 & ASTM E1019
Dimensional Inspection
OD, wall thickness, straightness & length per IS tolerances
Surface Coating QC
Zinc DFT checked per IS 4736 — adhesion & continuity tests
Third-Party Inspection (TPIA)
SGS, BV, TÜV, Lloyds — available on request for export orders
Mill Test Certificate (MTC)
EN 10204 3.1 / 3.2 format supplied with every batch
Heat & Batch Traceability
Full heat number tracing from raw material to finished pipe
Flattening & Flaring Test
Seam integrity test — pipe flattened to 2/3 OD without cracking
🌐

Sector CoverageIndustries Served

Oil & Gas
Transmission, refinery & LNG terminal piping
Power Generation
Boiler, condenser & cooling water systems
Chemical & Petrochemical
Process piping, reactors & storage tanks
Marine & Shipbuilding
Ballast, bilge & cargo piping on vessels
Automotive
Chassis tubes, exhaust systems & jigs
Real Estate & Construction
Structural framing, scaffolding & MEP
Food & Beverage
Utility water lines, CIP & process frames
Mining & Minerals
Slurry lines, ventilation & support structures
Railways & Metro
Station structure, canopy & bridge frames
Defence
Structural tubing for defence infrastructure
Solar Energy
Module mounting structures & tracker frames
Textile Industry
Machine frames, overhead rails & conveyor pipes
Related Products & Search Terms
MS Pipe Weight ChartMild Steel PipeIndustrial MS PipeSteel Pipe SizesMS Pipe ManufacturerSchedule 40 Mild Steel PipeStructural Steel PipeSteel Square PipePipe Weight Chart in KGIndustrial Steel TubesERW MS PipeGI PipeSeamless MS PipeHeavy Duty MS PipeIS 1239 PipeIS 3589 ERW PipeSCH 80 MS PipeRectangular Hollow SectionSquare Hollow SectionPipe Weight CalculatorMS Pipe Price per kgAPI 5L PipeASTM A53 PipeMS Pipe Manufacturer Mumbai

Get Instant Quote on MS Pipe

Share your requirement — we'll WhatsApp you a price within minutes.
Call / WhatsApp +91 98196 88259

By clicking, you agree to be contacted by PS Steel via WhatsApp for your enquiry. Available 7 days a week.
